Features

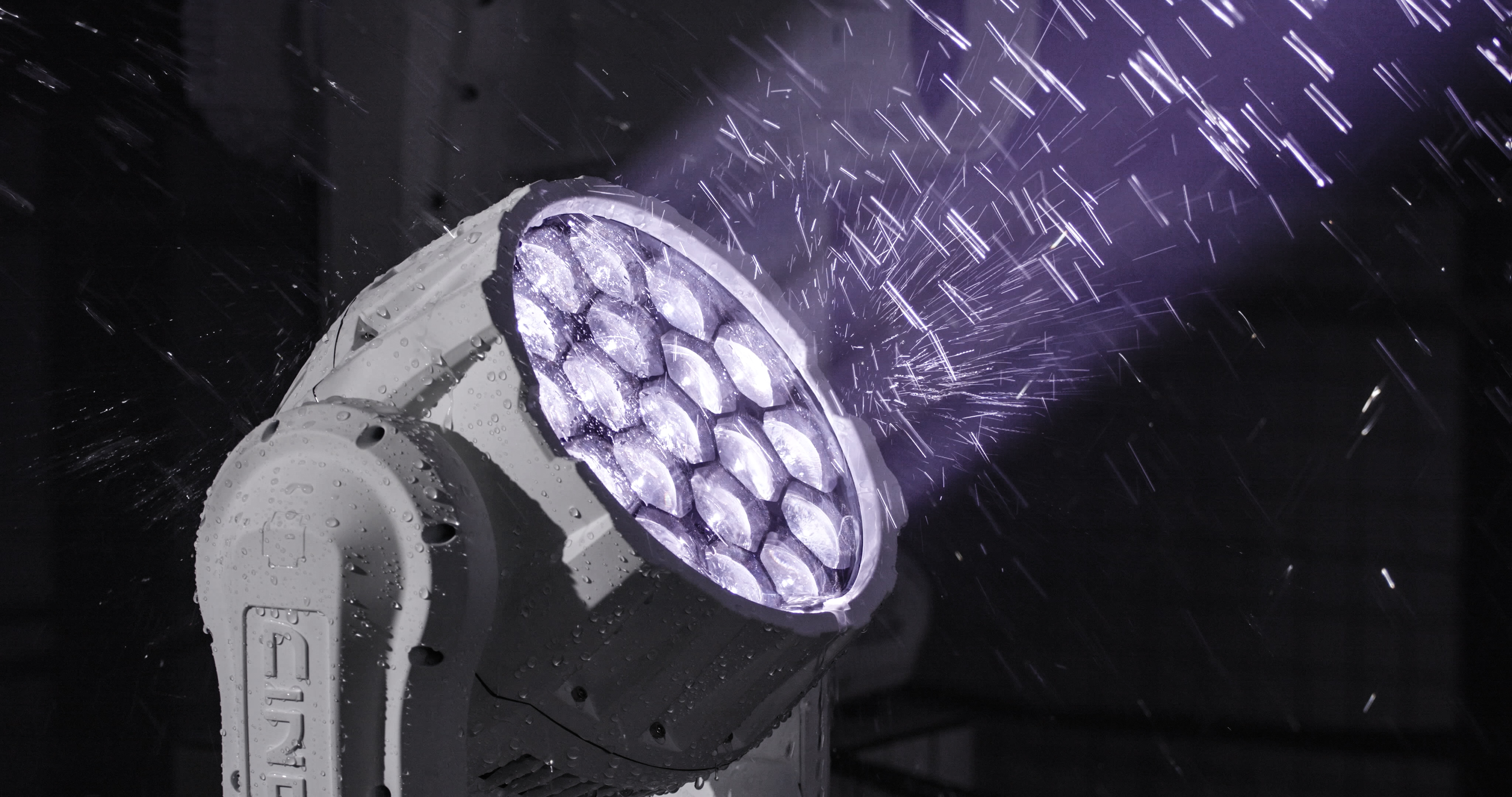

SW-2 WASH is a powerful, IP65-rated RGBW Osram LED moving head and the first of its kind to join CINDY professional product series. The fixture is outdoor-ready by using a die-cast aluminum casing together with stainless screws. Its customized optics are well suited for the audience and aerial washing, even at larger venues. Pixel-mapping effects and a massive zoom range further add to the unit’s versatility, and a virtual gobo wheel with background colors creates an array of immersive atmospheric effects.

Technical & Specification

OPTICAL

#Light Source: 19 pcs 20W RGBW 4 in 1 LED
#Color Temperature: 2800K-10000K adjustable
#Beam Angle: 9°-48°
#Luminaire Output: 5,500lm
#Illuminance (9°):9,500lux @ 5m
#Illuminance (48°): 750lux @ 5m
#PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz

DYNAMIC EFFECT

#LED: pixel control
#Selectable Pan Ranges: 180°, 360°, 540°
#Selectable Tilt Ranges: 90°, 180°, 270°
#Dimmer: 0-100% electronics, 4 dimming curves options.
#Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
#Zoom: Motorized
#Color Mixing:RGBW mixing or CMY mixing

ELECTRONIC/OPERATION TEMPERATURE

#Input Voltage: 100V-240V, 50/60Hz
#Power: 440W
#Temperature (Ambient): -5° to 45°

CONTROL/CONNECTION

#Control Protocol: DMX, RDM, ArtNet, Kling-Net, sACN, WDMX(*optional)
#DMX (Single Mode): 20, 96, 178, 216
#DMX (Dual Mode) Movement: 8, 20, 26
#DMX (Dual Mode) Pixel: 57, 76, 152
#Control Mode: DMX, Manual, Auto
#IP65 rated 3 pin XLR input/output
#IP65 rated power input

PHYSICAL

#Size: 412*306*477mm
#Weight: 26KG
#Housing Colors: black or white
#IP Rated: IP65

SERIES

APPLICATION

SW-2 WASH

$101.00
