Features

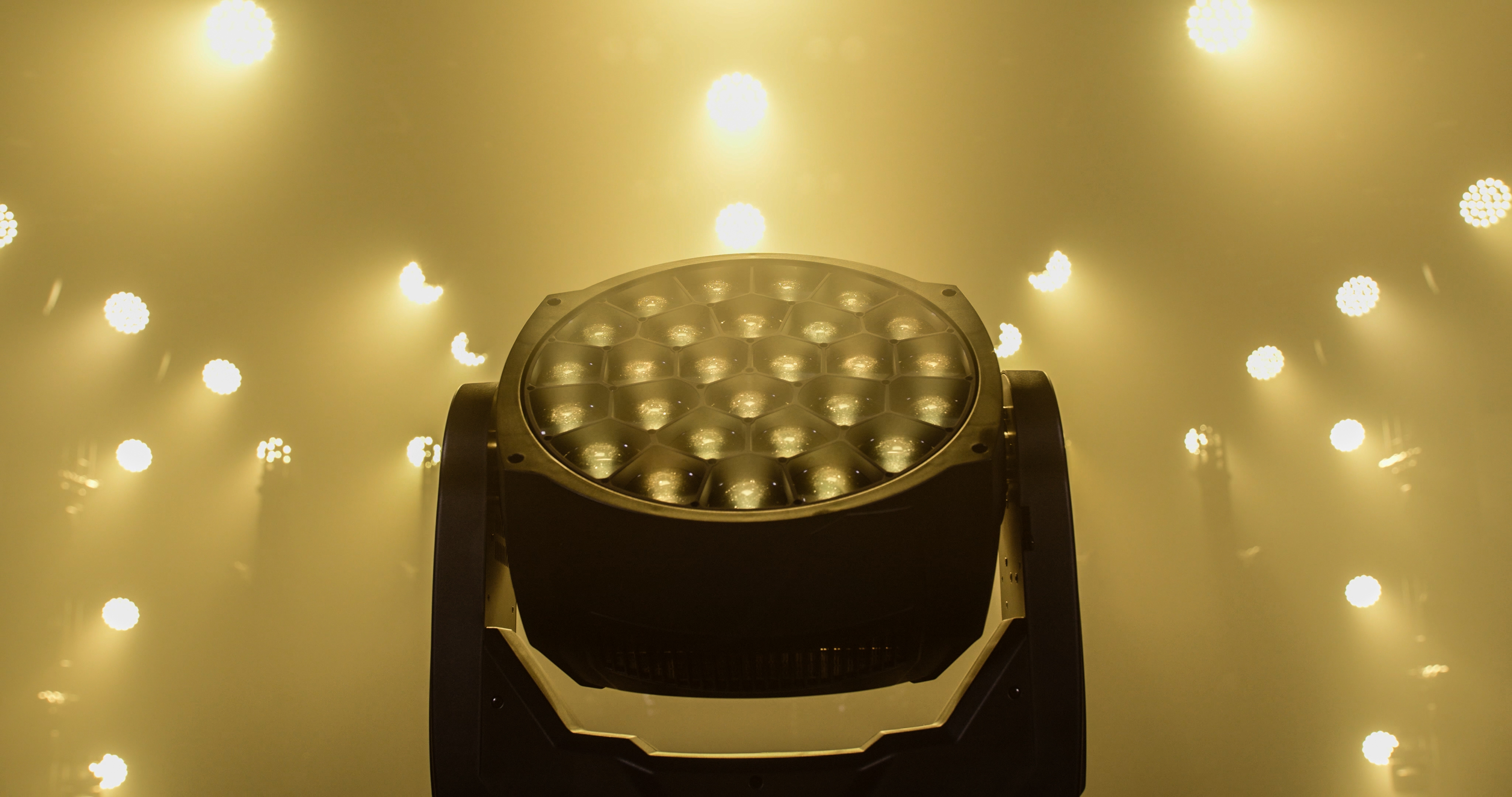

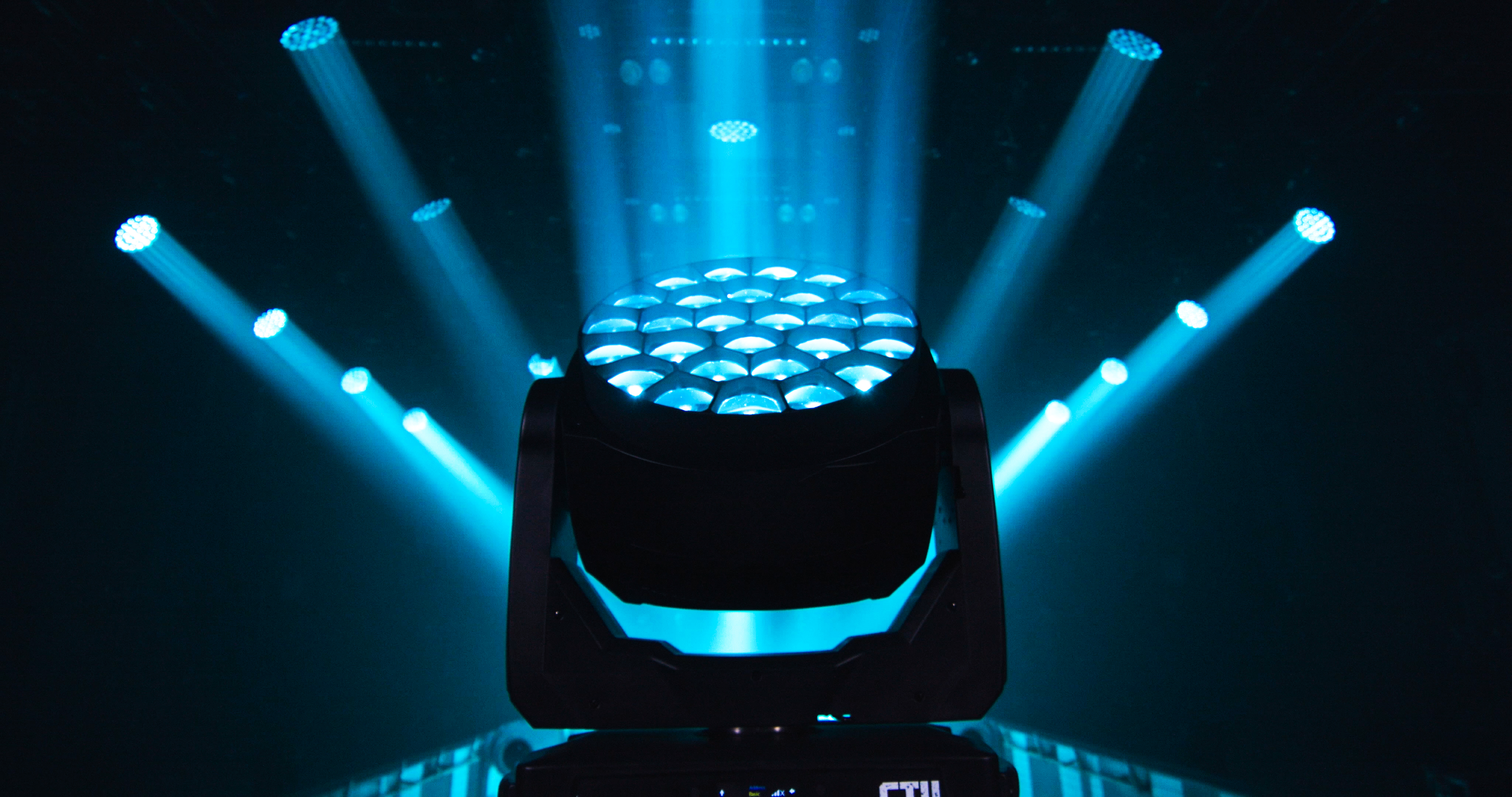

An upgrade and more powerful version of CT3 WASH, CT4 WASH is featuring 27 pcs 40W RGBW 4 in 1. Fixture output is up to 15,500lm, illuminance up to 52,000lux at 5 meters. Each LEDs can be independently controlled. CT4 WASH is a versatile fixture with multiple LED pattern options and up to 120 LED built-in effects. The zoom ratio is 10:1. The smooth dimmer function helps to illuminate the stage to a dreamlike world.

Technical & Specification

OPTICAL

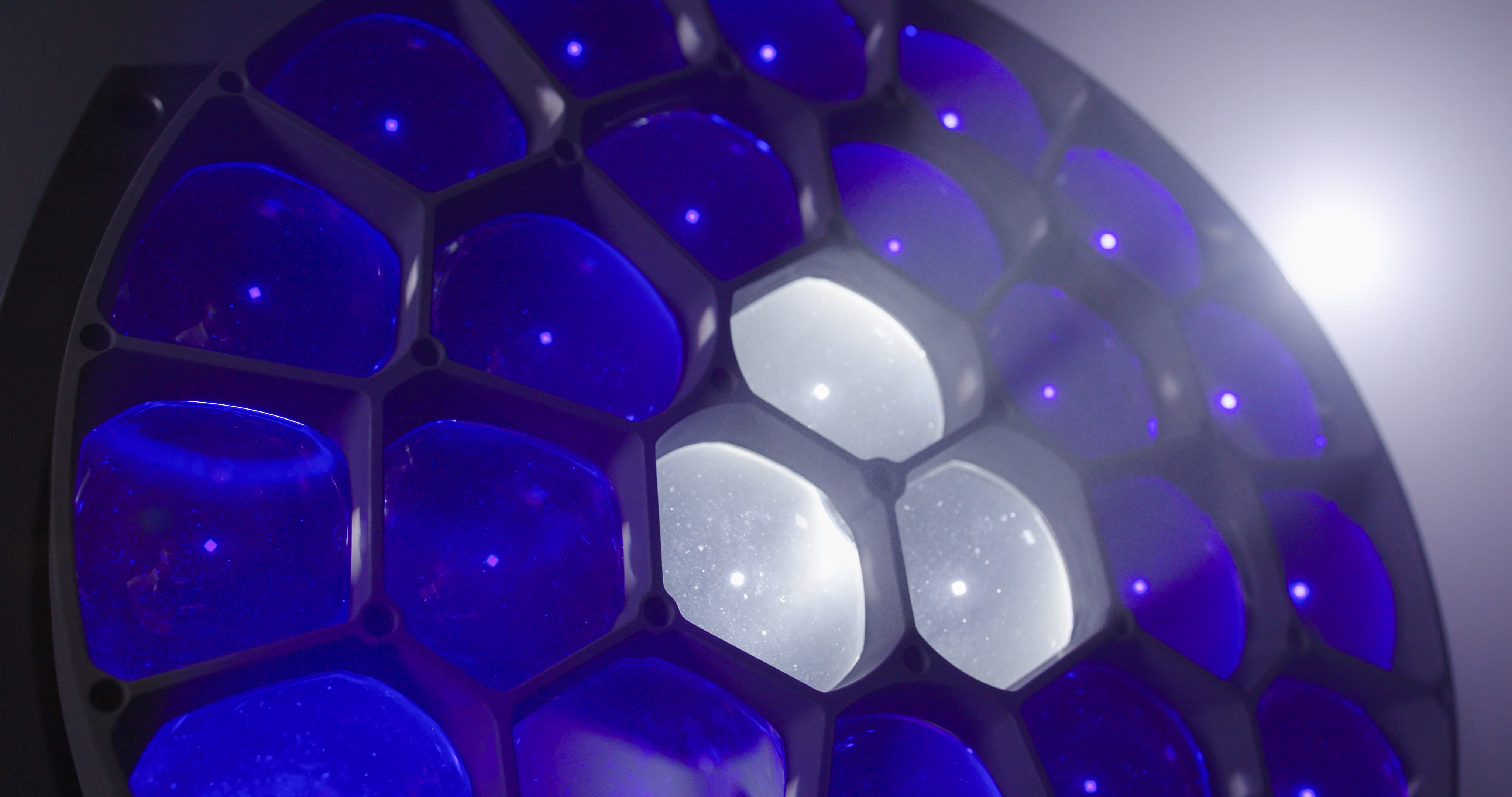

#Light Source: 27 pcs 40W RGBW 4 in 1 LED
#Color Temperature: 2800K-10000K adjustable
#Beam Angle: 4.5°-45°
#Luminaire Output: 15,500lm
#Illuminance (4.5°): 52,000lux @ 5m
#Illuminance (45°): 1,950lux @ 5m
#PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz

DYNAMIC EFFECT

#LED: pixel control
#Selectable Pan Ranges: 180°, 360°, 540°
#Selectable Tilt Ranges: 90°, 180°, 270°
#Dimmer: 0-100% electronics, 4 dimming curves options.
#Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
#Zoom: Motorized
#Color Mixing:RGBW mixing or CMY mixing
#Pan/Tilt/Color Blackout Optional

ELECTRONIC/OPERATION TEMPERATURE

#Input Voltage: 100V-240V, 50/60Hz
#Power: 1,100W
#Temperature (Ambient): -5° to 45°

CONTROL/CONNECTION

#Control Protocol: DMX, RDM, ArtNet, Kling-Net, sACN, WDMX(*optional)
#DMX (Single Mode): 21, 129, 243, 297
#DMX (Dual Mode) Movement: 9, 21, 27
#DMX (Dual Mode) Pixel: 81, 108, 216
#Control Mode: DMX, Manual, Auto
#3 pin/5pin XLR input/output ethernet input/output

PHYSICAL

#Size: 476*369*536mm
#Weight: 31KG
#Housing Colors: Black
#Housing Material: High-impact flame-retardant polymer
