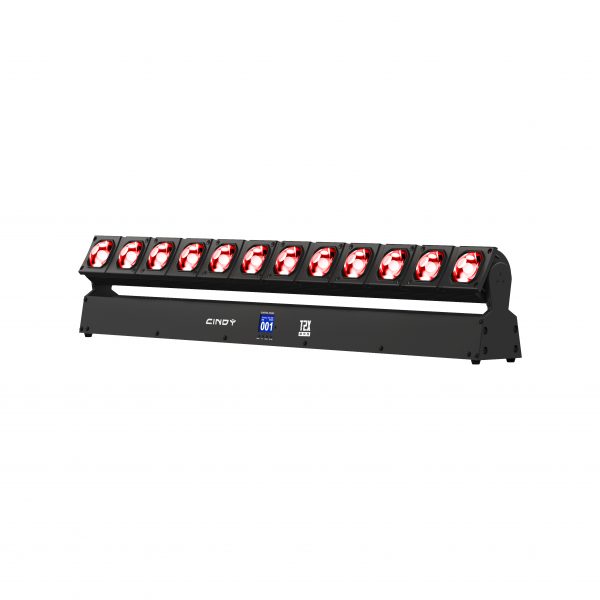

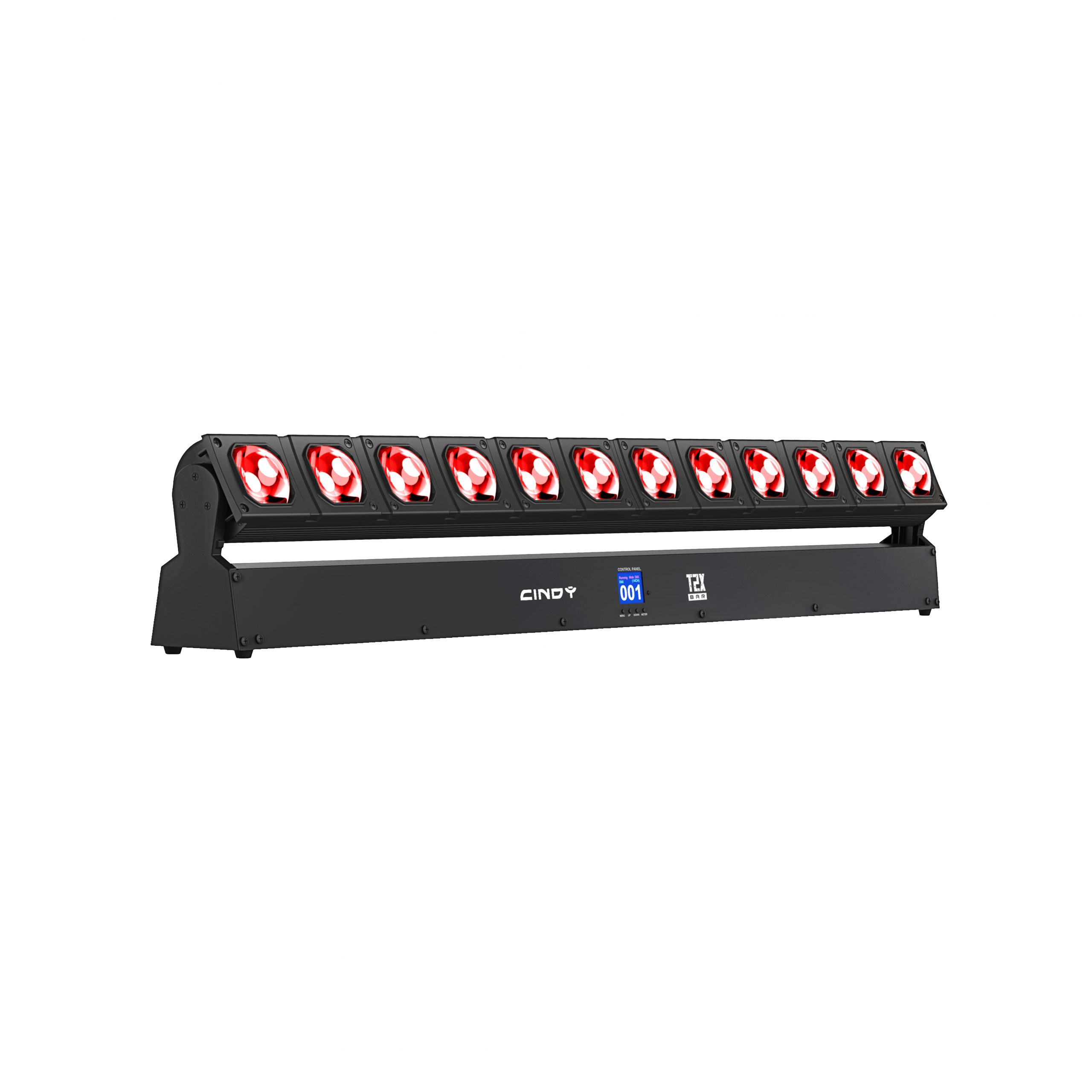

T2X BAR is a compact bar product suitable for concert, TV shows, etc. It has 12 pcs independently controlled 30W RGBW 4 in 1 LED. Tilt angles is from 0-200 degree, able to fully cover the stage. T2X BAR is a product to create sharp and colorful mid air effects.

Technical & Specification

OPTICAL

＃Light Source: 12 pcs 30W RGBW 4 in 1 LED
＃Beam Angle: 5°
＃Luminaire Output: 2,550lm
＃Illuminance (5°): 12,500lux @ 5m
DYNAMIC EFFECT

＃LED: pixel control
＃Selectable Tilt Ranges: 90°, 180°, 270°
＃Dimmer: 0-100% electronics, 4 dimming curves options.
＃Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
ELECTRONIC/OPERATION TEMPERATURE

＃Input Voltage: 100V-240V，50/60Hz
＃Power: 400W
＃Temperature (Ambient): -5° to 45°
CONTROL/CONNECTION

＃Control Protocol: DMX, RDM
＃DMX Channels: 18, 71, 83, 128
＃3 pin XLR input/output
PHYSICAL

＃Size: 996*95*179mm
＃Weight: 9KG
＃Housing Colors: Black
＃Housing Material: High-impact flame-retardant polymer
