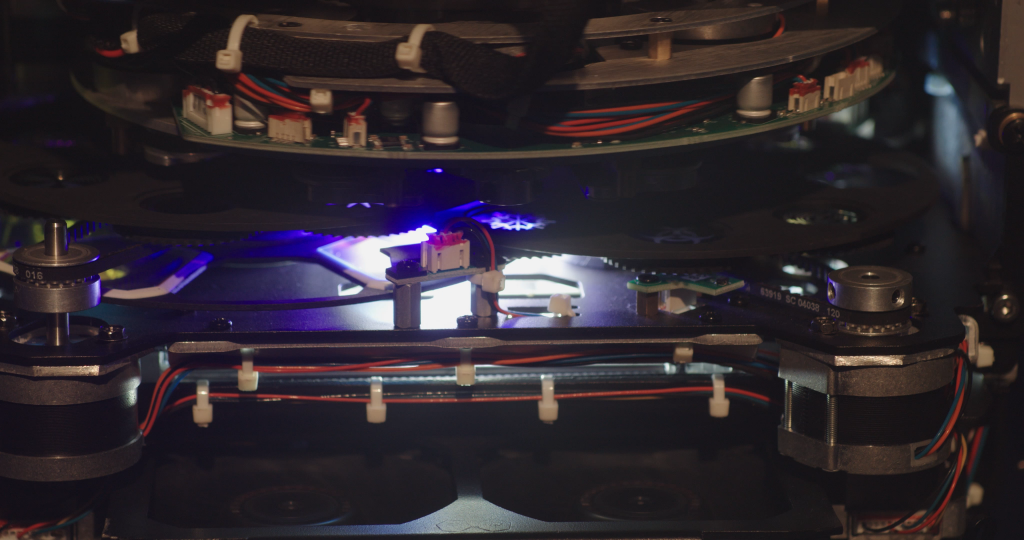

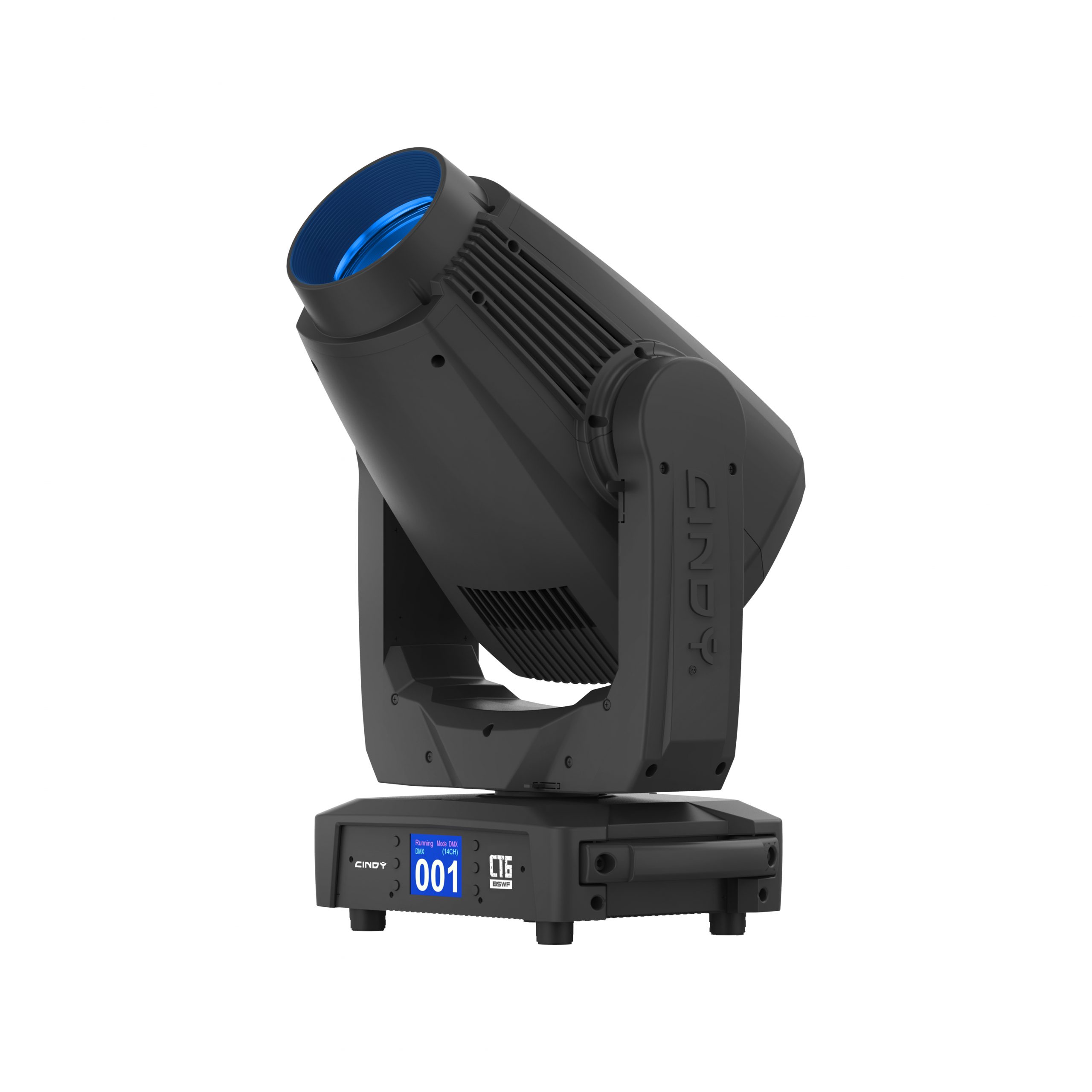

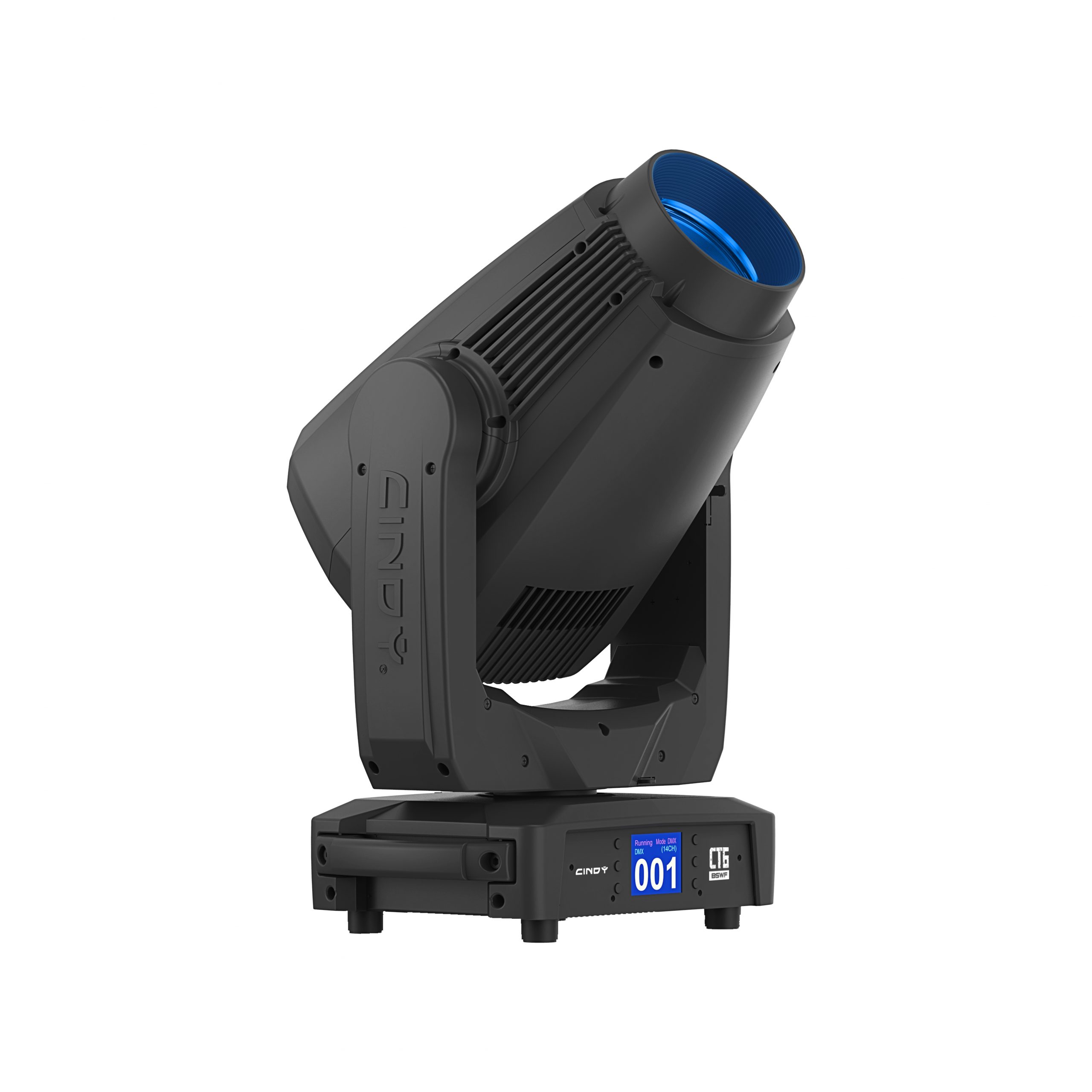

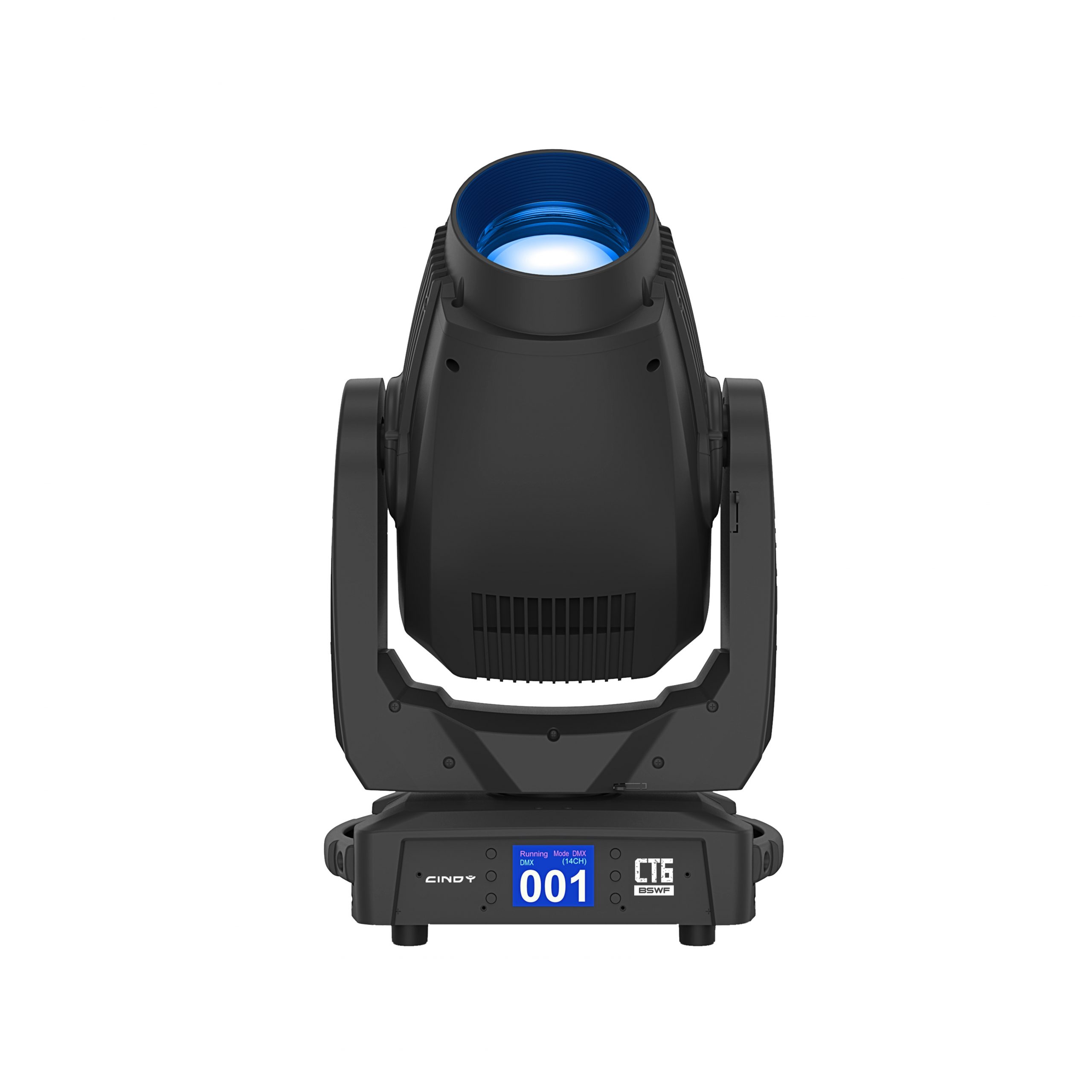

As a new member of BSWF series, CT6 BSWF is a fixture with over 23,000lm output, and capable of beam, spot, wash and profile function. Equipped with 4 fast moving and high heat resistant blades, the framing module can be also rotated at 120 degree. Good clarity for both blades and gobos, allows users to have dynamic gobos and framing effects. Apart from this, excellent CMY plus CTO color mixing with Ra>90 brings pure color experience to the audience. Spot field is even and powerful with a impressive 8:1 zoom range. More dynamic effects include color wheels with 7 colors capable of split colors and color scroll effects, 2 rotating gobo wheels, one glass gobo wheel and a metal gobo wheel. High power, excellent gobo image, pure color, and multiple dynamic effects enable CT6 BSWF to be a perfect professional product for no matter theatre, big live show, or studio applications.

Technical & Specification

OPTICAL

#Light Source: 600W white LED module
#High CRI Mode:Ra>90
#Color Temperature: 7,000 K
#Beam Angle: 6.5°-52°
#Luminaire Output: 23,000lm
#Illuminance (6.5°): 55,800lux @ 5m
#Illuminance (52°): 2,100lux @ 5m
#PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

DYNAMIC EFFECT

#Selectable Pan Ranges: 180°, 360°, 540°
#Selectable Tilt Ranges: 90°, 180°, 270°
#Colors: 5+CTB+CRI+white, split colors, rainbow effects at variable speeds.
#Colors: CMY, CTO
#Gobos 1: 6 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
#Gobos 2: 6 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
#Framing Shutters: 4 individual shutter blades, rotation of module is 120°
#Dimmer: 0-100% electronics, 4 dimming curves options.
#Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
#Focus: Motorized
#Zoom: Motorized
#Frost: Motorized
#Iris: Motorized
#Prism: 5-facet prism, rotating at variable speeds.

ELECTRONIC/OPERATION TEMPERATURE

#Input Voltage: 100V-240V, 50/60Hz
#Power: 820W
#Temperature (Ambient): -5° to 45°

CONTROL/CONNECTION

#Control Protocol: DMX, RDM, ArtNet, sACN, WDMX(*optional)
#DMX Channels: 33, 50

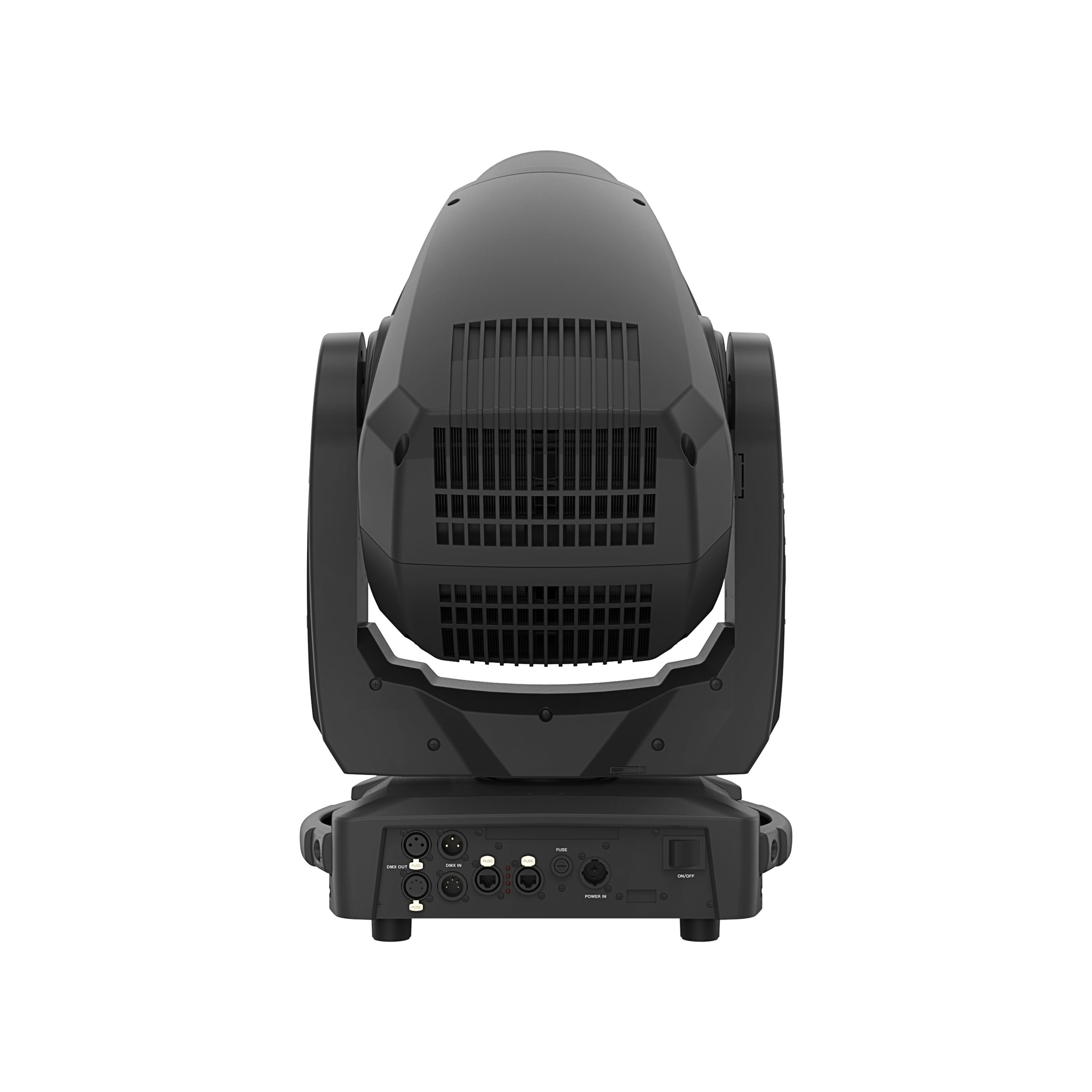

#3 pin/5 pin XLR input/output ethernet input/output

PHYSICAL

#Size: 394*259*670mm
#Weight: 26KG
#Housing Colors: Black
#Housing Material: High-impact flame-retardant polymer
