Features

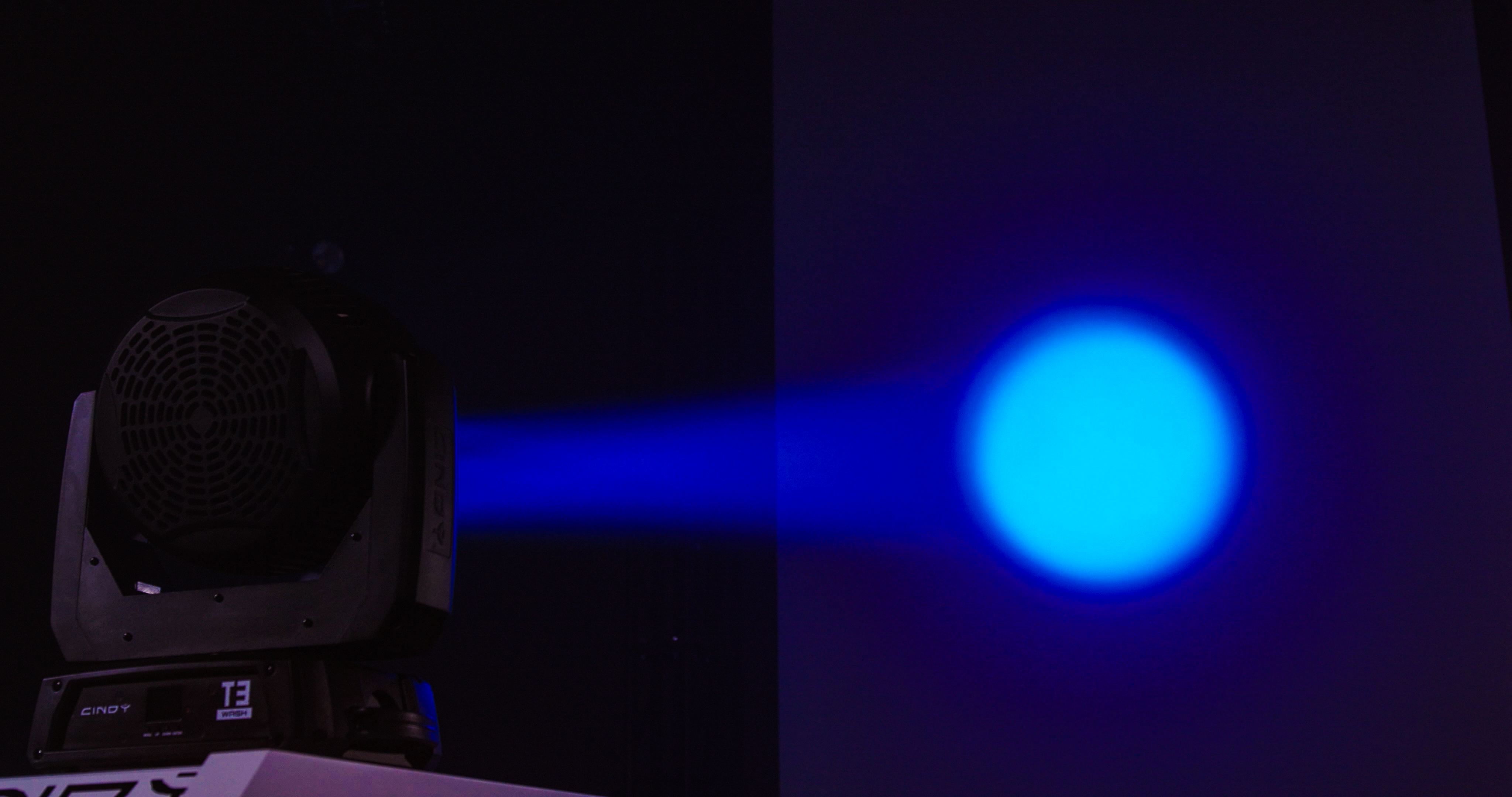

Next level to T2 WASH, CINDY presents T3 WASH, again powerful and compact. 37 pcs 20W RGBW 4 in 1 LEDs can be controlled via 9 sections. It has a linear zoom system with a zoom range from 12 to 52 degrees. Color fade and dimmer are extremely smooth, which can satisfy users’ needs to give a magic environment.

Technical & Specification

OPTICAL

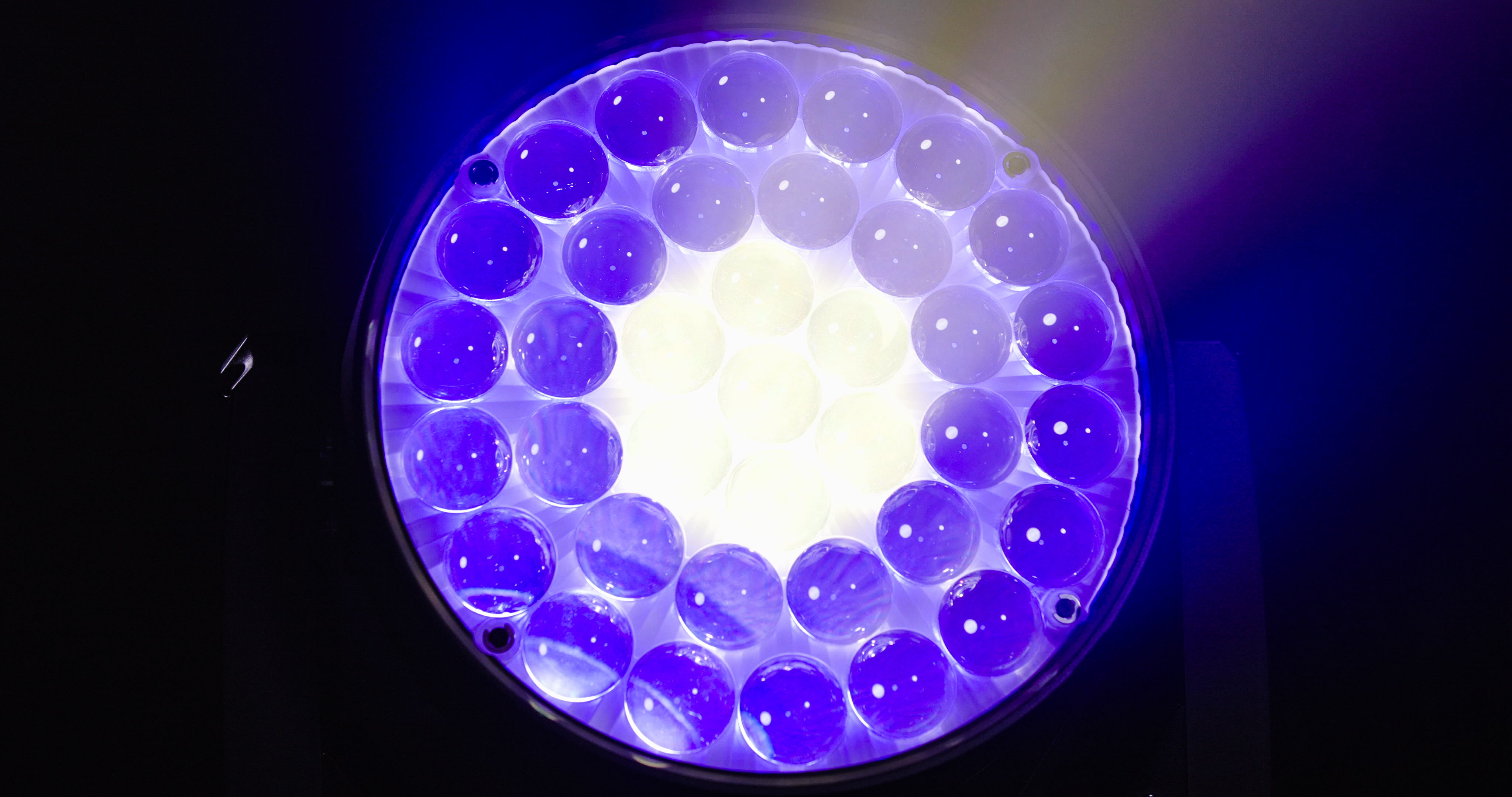

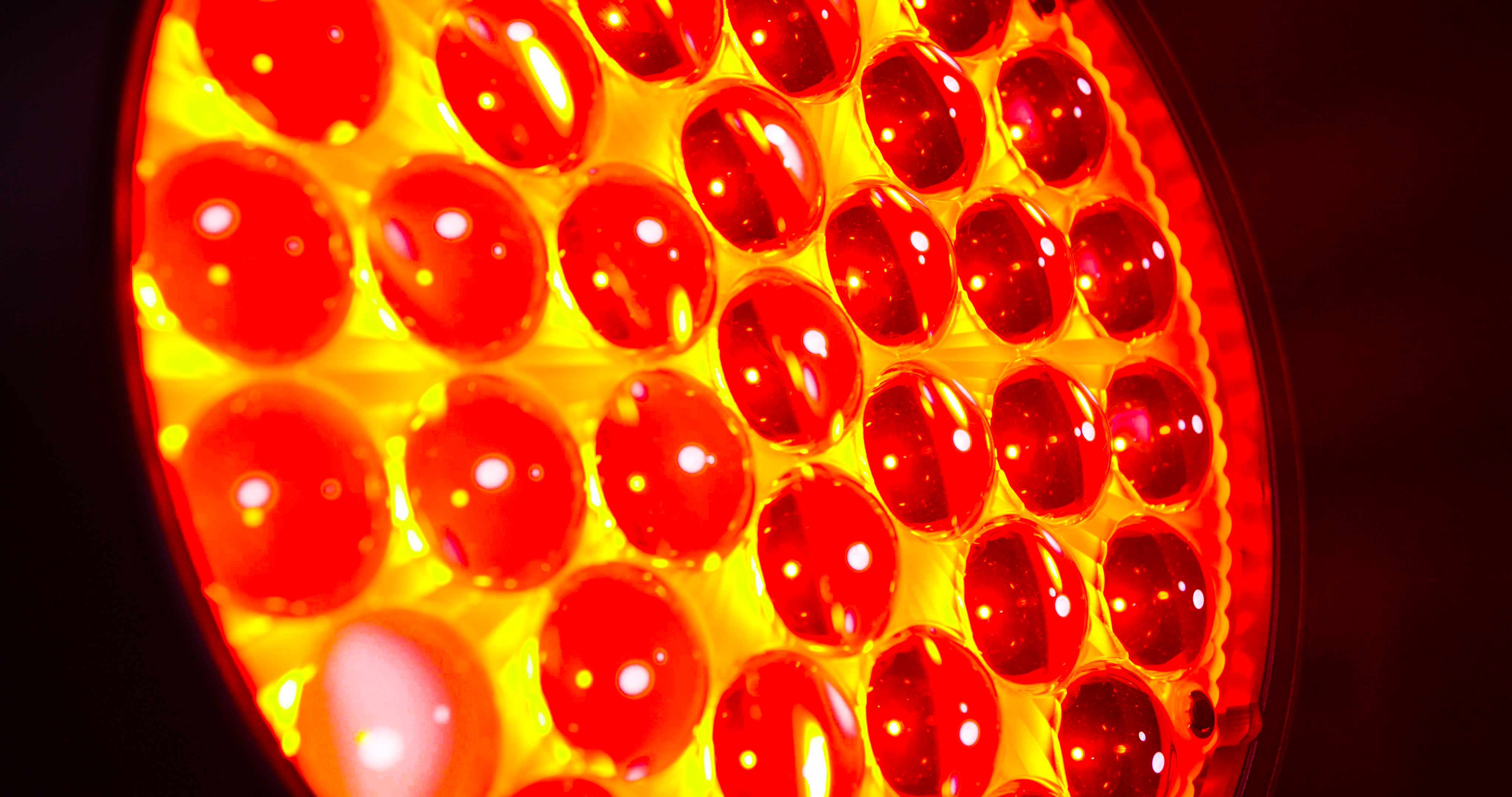

#Light Source: 37 pcs 20W RGBW 4 in 1 LED
#Beam Angle: 12°-52°
#Luminaire Output: 11,000lm
#Illuminance (12°): 15,000lux @ 5m
#Illuminance (52°): 1400lux @ 5m
#PWM options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz

DYNAMIC EFFECT

#LED: section control
#Selectable Pan Ranges: 180°, 360°, 540°
#Selectable Tilt Ranges: 90°, 180°, 270°
#Dimmer: 0-100% electronics, 4 dimming curves options.
#Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
#Zoom: Motorized
#Color Mixing:RGBW mixing or CMY mixing

ELECTRONIC/OPERATION TEMPERATURE

#Input Voltage: 100V-240V, 50/60Hz
#Power: 890W
#Temperature (Ambient): -5° to 45°

CONTROL/CONNECTION

#Control Protocol: DMX, RDM
#DMX Channels: 21, 62, 71, 107
#3 pin XLR input/output

PHYSICAL

#Size: 393*298*444mm
#Weight: 18KG
#Housing Colors: Black
#Housing Material: High-impact flame-retardant polymer

SERIES

APPLICATION

T3 WASH
