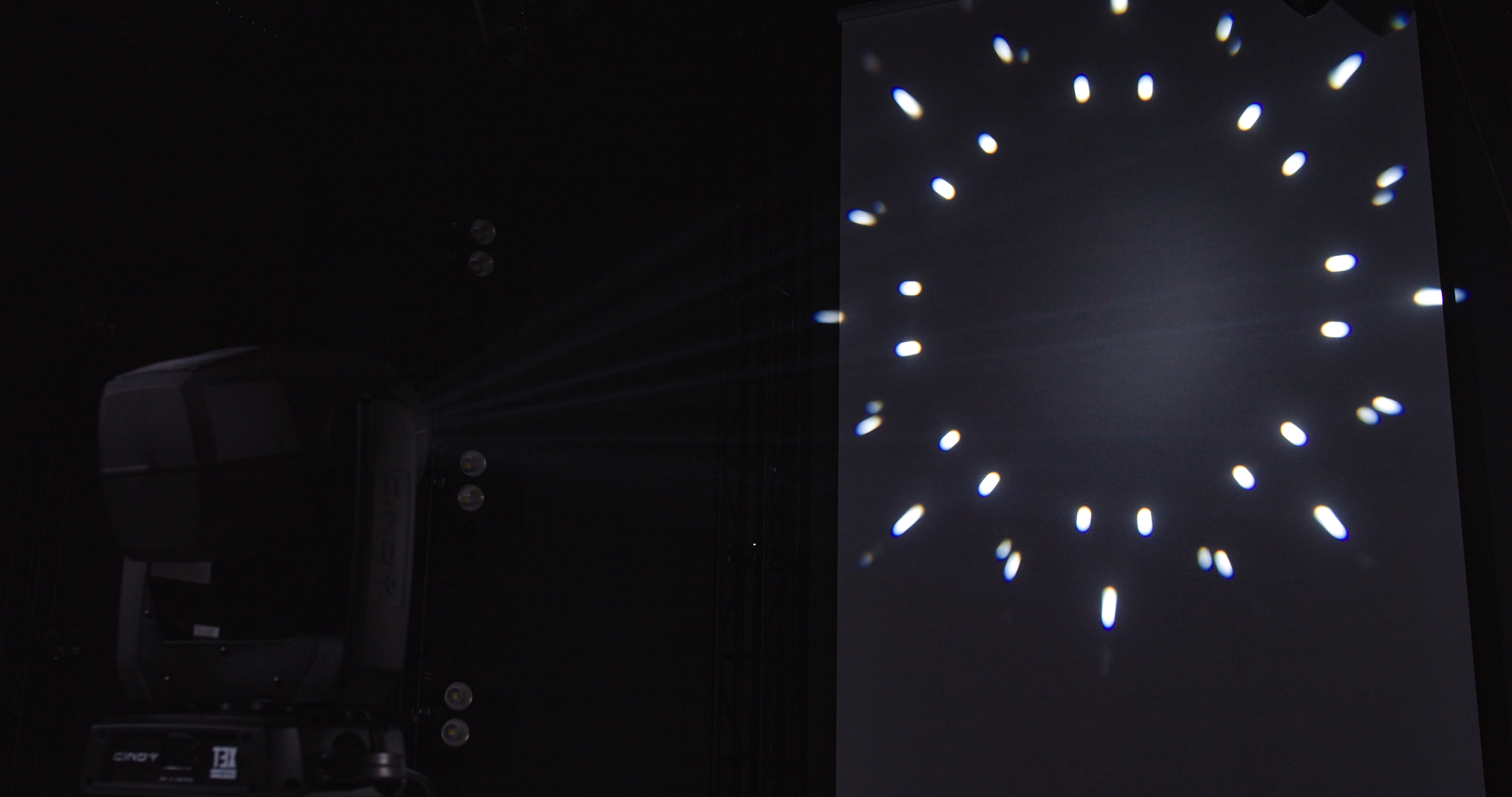

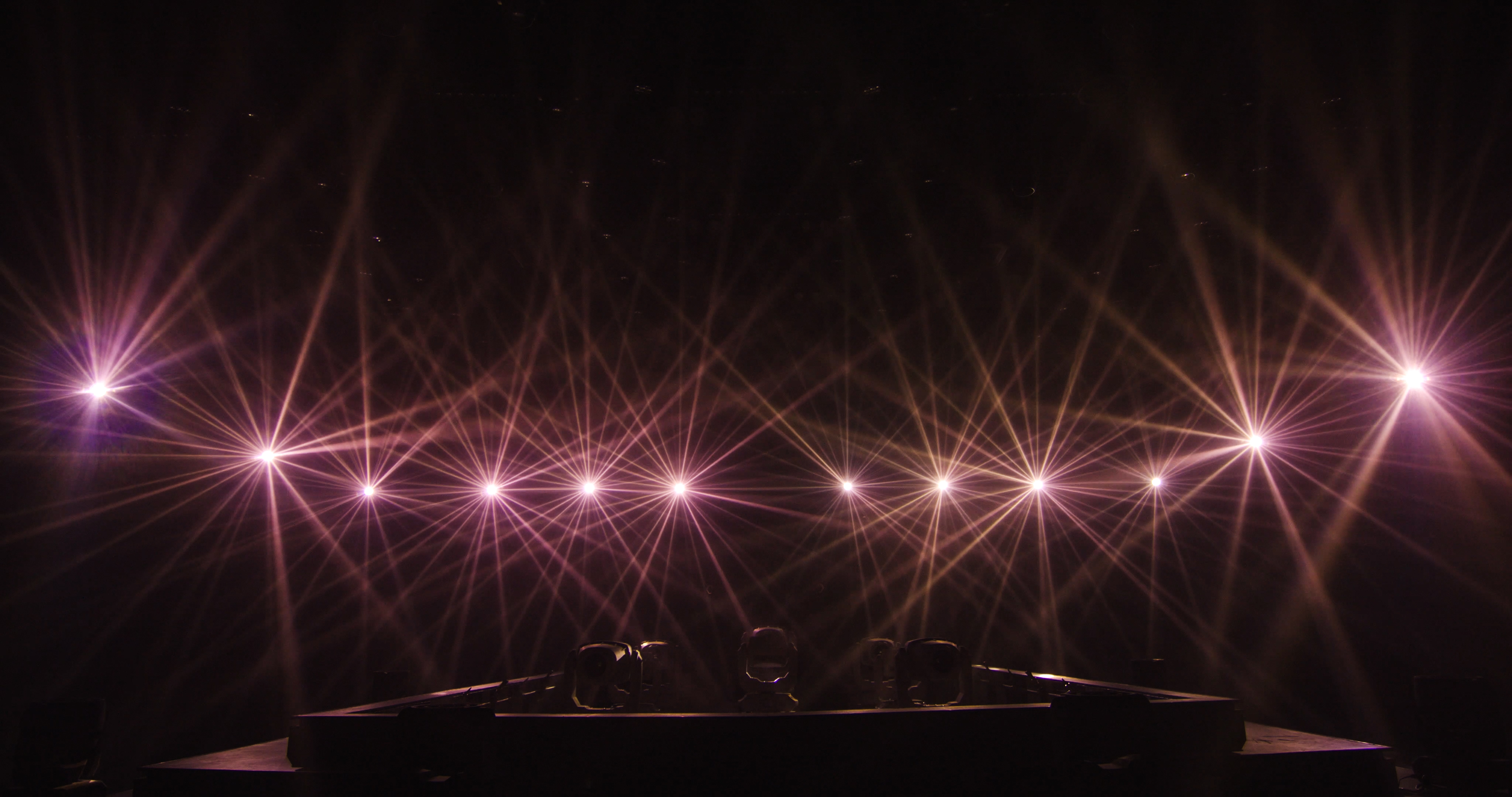

T3X HYBRID is a multi-functional product combining beam, spot functions. Using Ushio 300W long life lamp, its output can reach 7,500lm, 52,000lux at 20 meters in beam mode. T3X hybrid is capable of not only a sharp and powerful mid-air effect but also a flat field dynamic effect with a rotating gobo wheel and a static gobo wheel.

Technical & Specification

OPTICAL

＃Light Source: Ushio 300W Lamp
＃Color Temperature: 6,600K
＃Beam Angle (spot mode): 2.6°-43°
＃Beam Angle (beam mode): 2°-37°
＃Luminaire Output: 7,500lm
＃Illuminance（beam mode）: 48,000lux @ 20m
DYNAMIC EFFECT

＃Selectable Pan Ranges: 180°, 360°, 540°
＃Selectable Tilt Ranges: 90°, 180°, 270°
＃Colors: 12+white, split colors, rainbow effects at variable speeds.
＃Gobo 1: 16 static metal gobos+open, rainbow effects at variable speeds
＃Gobos 2: 9 rotating metal gobos+open, indexing, rainbow effects at variable speeds
＃Dimmer: 0-100% electronics
＃Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
＃Focus: Motorized
＃Zoom: Motorized
＃Frost: Motorized
＃Prism 1: 8-facet prism, rotating at variable speeds.
＃Prism 2: 24-facet prism, rotating at variable speeds.
ELECTRONIC/OPERATION TEMPERATURE

＃Input Voltage: 100V-240V, 50/60Hz
＃Power: 470W
＃Temperature (Ambient): -5° to 45°
CONTROL/CONNECTION

＃Control Protocol: DMX, RDM
＃DMX Channels: 19, 22
＃3 pin XLR input/output
PHYSICAL

＃Size: 322*220*558mm
＃Weight: 16KG
＃Housing Colors: Black
＃Housing Material: High-impact flame-retardant polymer
