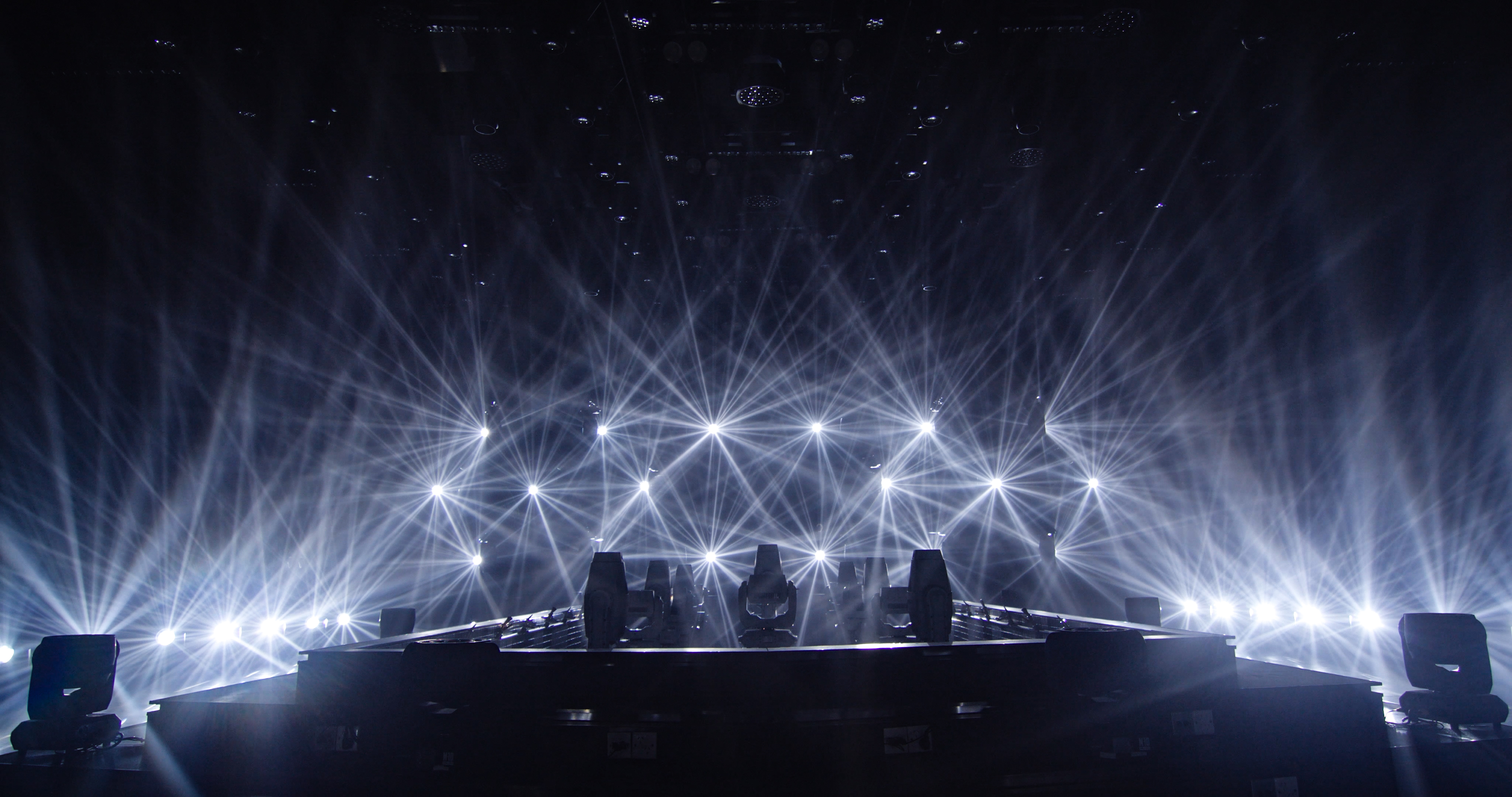

Shared the same housing with TLX BEAM, T2X BEAM uses Osram Sirius 231W lamp, with output more than 7,200lm, 110, 000lux at 20 meters. The beam angle is only 1.7 degrees, which can create a sharp and punching mid-air beam effect. T2X BEAM is a compact and powerful product, perfect for night clubs, TV show, and rental houses.

Technical & Specification

OPTICAL

#Light Source: Osram Sirius 231W Lamp
#Color Temperature: 7,500K
#Beam Angle: 1.7°
#Luminaire Output: 7,200lm
#Illuminance: 110,000lux @ 20m

DYNAMIC EFFECT

#Selectable Pan Ranges: 180°, 360°, 540°
#Selectable Tilt Ranges: 90°, 180°, 270°
#Colors: 14+white, split colors, rainbow effects at variable speeds.

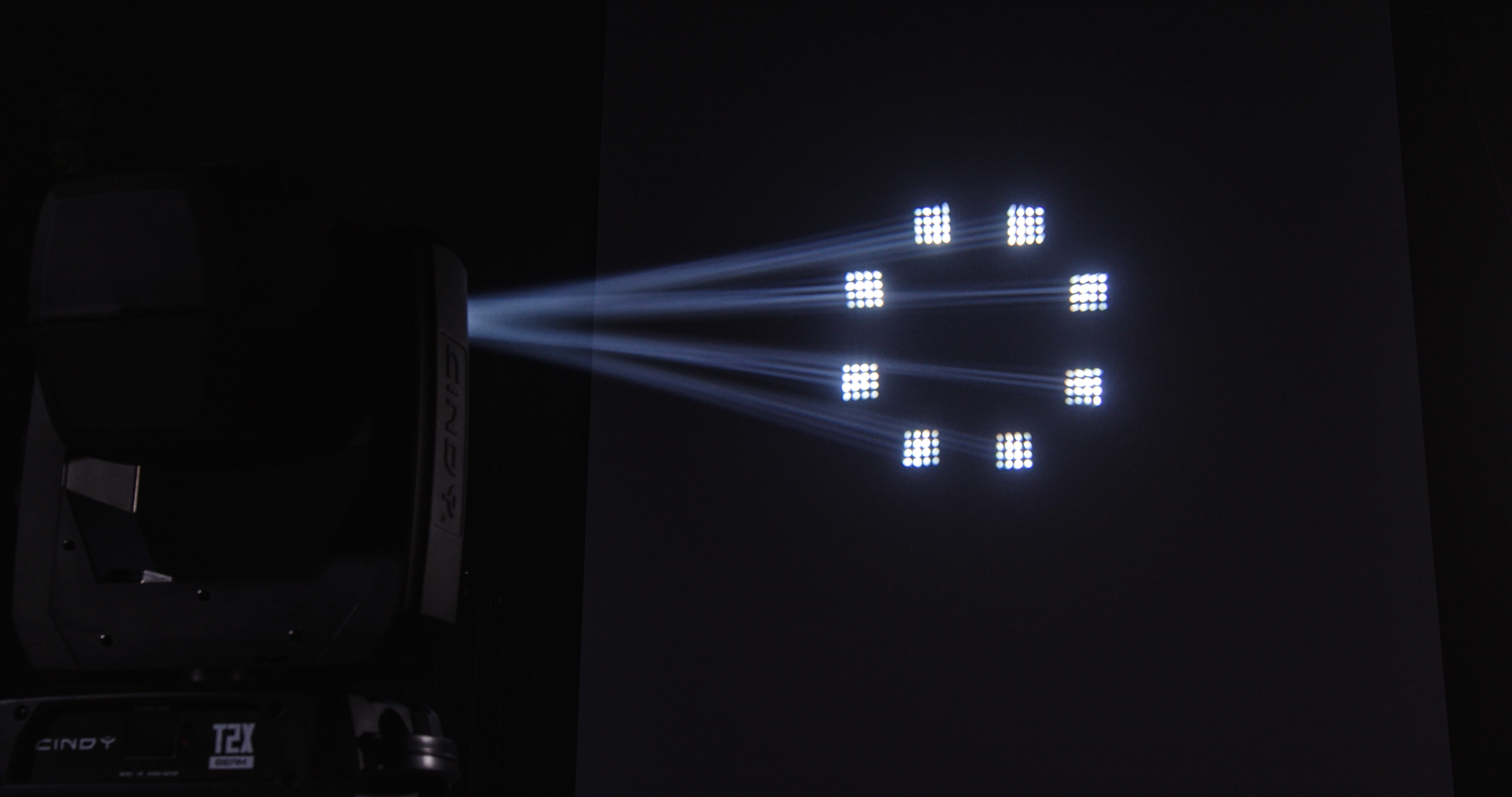

#Gobos: 17 static metal gobos+open, rainbow effects at variable speeds
#Dimmer: 0-100% electronics
#Strobe: 0-15Hz, selectable multiple strobe effects with different speeds
#Focus: Motorized
#Frost: Motorized
#Prism 1: 8-facet prism, rotating at variable speeds
#Prism 2: 24-facet prism, rotating at variable speeds

ELECTRONIC/OPERATION TEMPERATURE

#Input Voltage: 100V-240V, 50/60Hz
#Power: 340W
#Temperature (Ambient): -5° to 45°

CONTROL/CONNECTION

#Control Protocol: DMX, RDM
#DMX Channels: 16, 19
#3 pin XLR input/output

PHYSICAL

#Size: 323*220*550mm
#Weight: 16KG
#Housing Colors: Black
#Housing Material: High-impact flame-retardant polymer
